Solid-CIM 3D

Solid-CIM 3D by CIM-TECH makes your models and assemblies ready for manufacturing instantly. The Award winning Automatic Feature Recognition works directly on 3D solids and 3D solid assemblies to lay parts flat and identify part name, material, label information and features with cut depths. Whether drafted within AutoCAD or any other modeling program, your design is easily brought true to life through Solid-CIM 3D.

Solid-CIM 3D Features:

  • Automatic Feature Recognition for 3D solids and 3D assemblies
  • Identifies features beyond the standard six-sided feature recognition
  • Fully integrated support for edgebanding
  • Supports grain direction and veneer matching
  • Creates user-defined layered DWG and DXF files
  • Produces a cut list to organize parts and assemblies
  • Supports a wide range of 3D file formats
  • Captures part names, material and label information

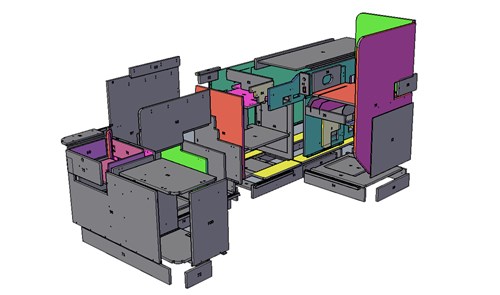

  • Expanded assembly views
  • The connect feature works directly inside Autodesk Inventor, SolidEdge, and SolidWorks
